MicroFit MFHLP31490 Replaces the Hydac 0330 D 003 ONV

0330 D 003 ONV
0330 D 003 ONV
Representative product image Product image feedback

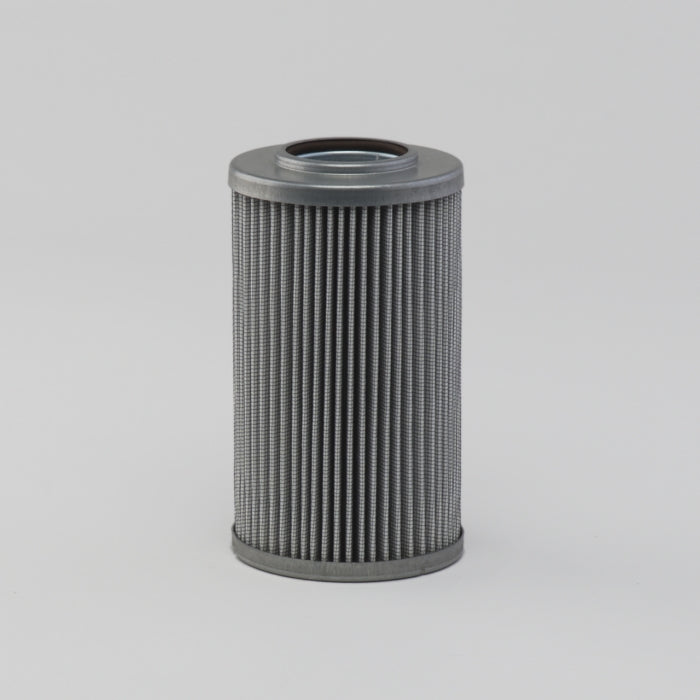

MicroFit® UltraGen III MFHLP31490 Pressure Filter | Replaces the Hydac 0330 D 003 ONV

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHLP31490 is the MICROFIT® approved replacement to the Hydac 0330 D 003 ONV. Engineered and manufactured in Great Britain the MFHLP31490

Price Match
¥13,900
4.42 lbs
0.047 ft³
66 pcs
United Kingdom
8421.99.90
2.01 lbs
0.046 ft³
66 pcs
Italy
8421.99.90
1.1 lbs
0.107 ft³
66 pcs
United States
8421.29.80.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHLP31490 is the MICROFIT® approved replacement to the Hydac 0330 D 003 ONV. Engineered and manufactured in Great Britain the MFHLP31490

Specification

StylePressure Filter
MediaGlass Fiber
Efficiency 13µ @ β200
Efficiency 25µ @ β1000
Outer Diameter 90.5 mm
Inner Diameter 48.2 mm
Length 162.0 mm
Δ Collapse Pressure 20 bar
Seal MaterialViton
Temperature Range -25 - +120°C
Hydac Brand Logo

Same Fit-Form & Function

As the Genuine Hydac 0330 D 003 ONV

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
3µ @ β200
Efficiency 2 5µ @ β1000
Style Pressure Filter
Outer Diameter 3.56 in
Inner Diameter 1.9 in
Length 6.38 in
Media Type Glass Fiber
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 290 PSI
Seal Viton
Temperature Range -10 - +250°F
