MicroFit MFHR56629 Replaces the Hy-Pro HP83L1660WB

HP83L1660WB
HP83L1660WB
Representative product image Product image feedback

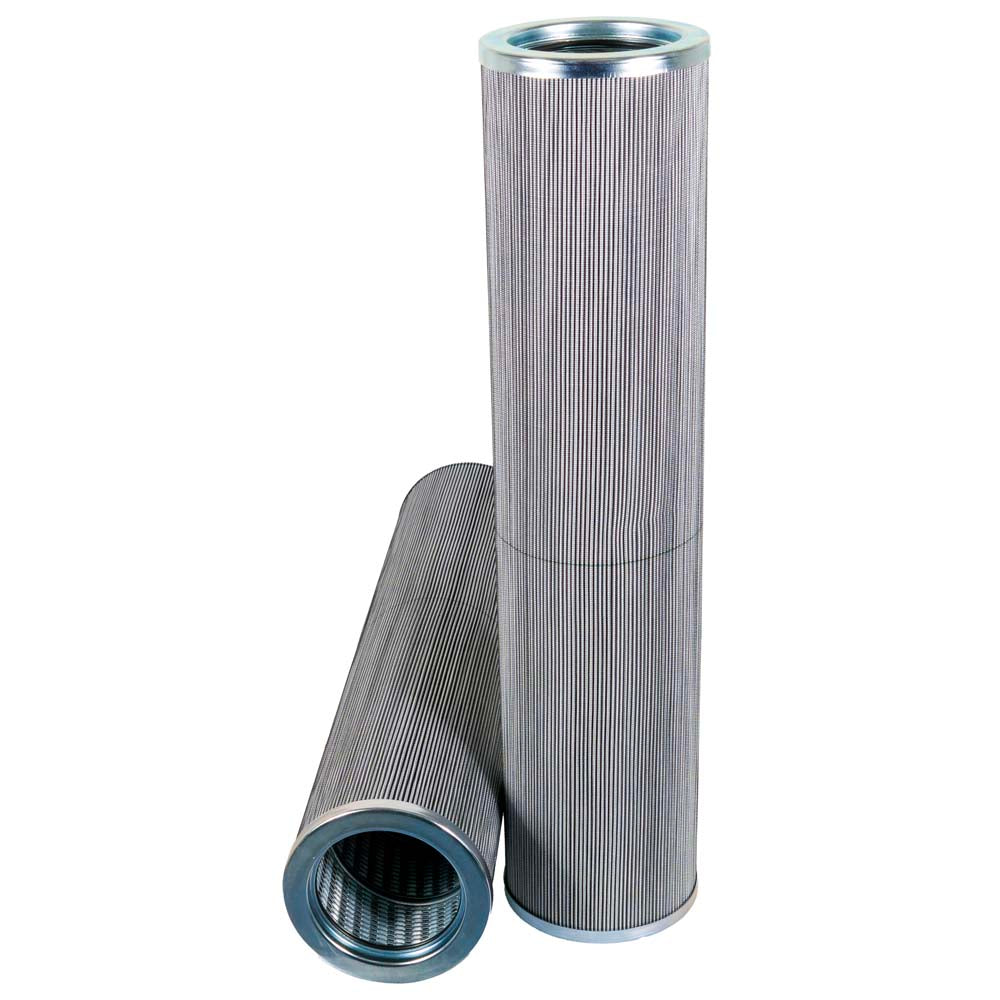

MicroFit® UltraGen III MFHR56629 Return Filter | Replaces the Hy-Pro HP83L1660WB

Brand: MicroFit
Description

The MICROFIT® UltraGen III MFHR56629 is the MICROFIT® approved replacement to the Hy-Pro HP83L1660WB. Engineered and manufactured in Great Britain the MFHR56629

Price Match
$18,423.00
28.18 lbs
0.53 ft³
United Kingdom
8421.99.90
5.8 lbs
0.529 ft³
Italy
8421.99.90
Shipping Terms

Description

The MICROFIT® UltraGen III MFHR56629 is the MICROFIT® approved replacement to the Hy-Pro HP83L1660WB. Engineered and manufactured in Great Britain the MFHR56629

Specification

StyleReturn Filter
MediaWire Mesh
Efficiency 160µ
Outer Diameter 152.0 mm
Inner Diameter 105.5 mm
Length 649.0 mm
Δ Collapse Pressure 10 bar
Seal MaterialNitrile
Temperature Range -30 - +100°C
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hy-Pro HP83L1660WB

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
60µ
Efficiency 2
Style Return Filter
Outer Diameter 5.98 in
Inner Diameter 4.15 in
Length 25.55 in
Media Type Wire Mesh
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 145 PSI
Seal Nitrile
Temperature Range -20 - +210°F
