Summary

Donaldson P550212 Replaces the Hilco PL718-05C

PL718-05C
PL718-05C
Watch video
▶
Representative product image Product image feedback

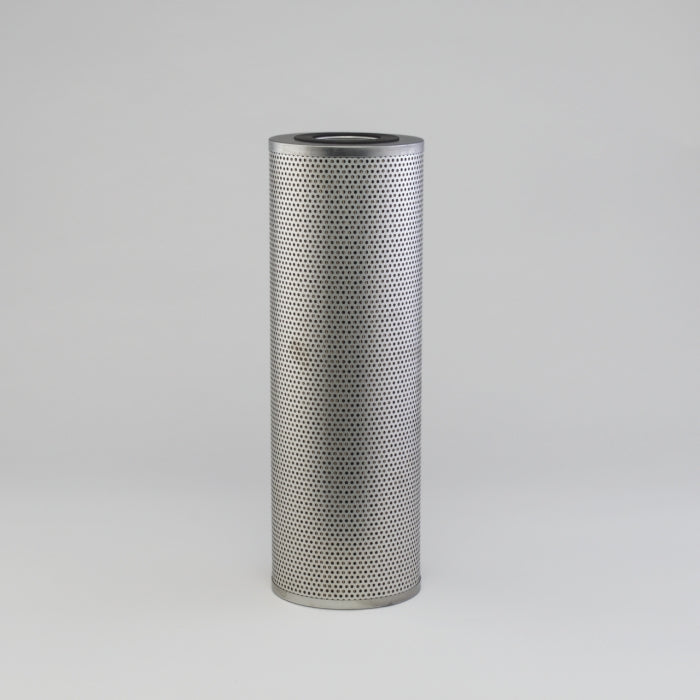

Donaldson P550212 Hydraulic Filter, Cartridge | Replaces the Hilco PL718-05C

Brand: Donaldson
Description

Genuine Donaldson P550212 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Price Match
$62.00
3.86 lbs
0.436 ft³
84 pcs
Mexico
8421.29.80.90
3.7 lbs
0.443 ft³
84 pcs
France
8421.99.90
9.3 lbs
0.383 ft³
84 pcs
Italy
8421.99.90
Shipping Terms

Description

Genuine Donaldson P550212 Hydraulic Filter, Cartridge is designed to provide superior protection for your hydraulic system, effectively capturing contaminants to ensure clean fluid circulation. With high-quality filtration media, it extends equipment life, improves operational efficiency, and maintains fluid cleanliness even in the most demanding environments.

Built for industrial, agricultural, and heavy-duty applications, this filter offers excellent dirt-holding capacity and flow efficiency. Its easy installation and maintenance help reduce downtime, making it a reliable choice for keeping hydraulic systems running smoothly.

Specification

StyleReturn Filter
MediaCellulose
Efficiency 15µ @ β2
Outer Diameter 6 1/16"
Inner Diameter 2 5/8"
Length 18"
Δ Collapse Pressure 101.5 psi
Seal MaterialNitrile
Temperature Range -20 - +210°F
Default Brand Logo

Same Fit-Form & Function

As the Genuine Hilco PL718-05C

ISO Icon

Inspected to ISO 9001:2015

See Our Certification
Returns Icon

Free 45-Day Returns

Return Policy
Warranty Icon

1 Year Manufacturer Warranty

Our Warranty
Specification
Efficiency 1
The efficiency of the element is shown using the Micron (µ) and Beta (β) ratings. The micron rating indicates the size of the particle being filtered and the beta rating the efficiency, calculated as 1/β.
E.g. a rating of β200 will be 99.5% efficient whereas β1000 would be 99.9%.
5µ @ β2
Efficiency 2
Style Return Filter
Outer Diameter 6.08 in
Inner Diameter 2.62 in
Length 17.99 in
Media Type Cellulose
Flow Direction OUT-IN
Thread
Bypass Pressure

Bypass pressure relieve build-up of pressure within the system and allows medium to bypass the element when pressure increases and reaches a sufficient level.

Collapse Pressure 102 PSI
Seal Nitrile
Temperature Range -20 - +210°F
